interceptor missilecombat-provenpartial data

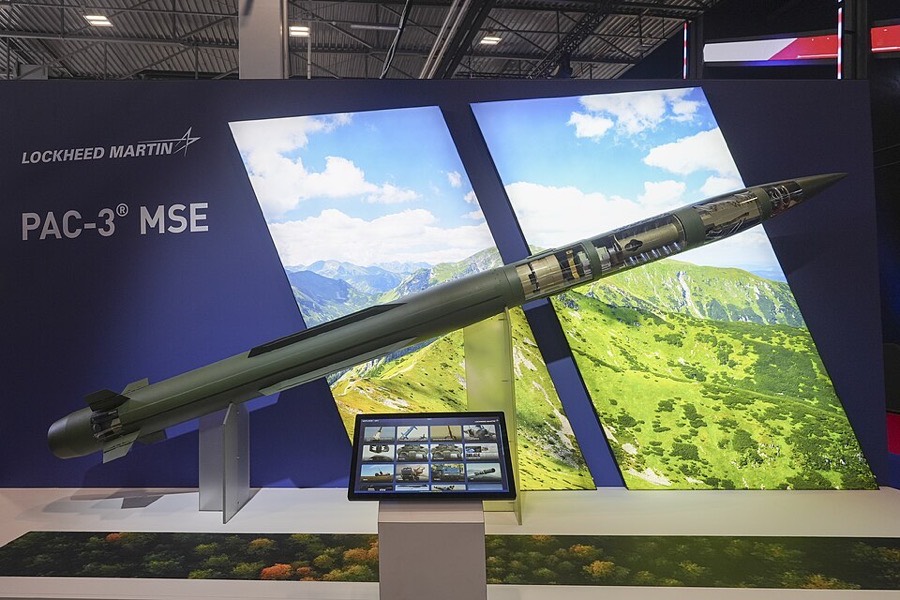

PAC-3 MSE
Patriot Advanced Capability-3 Missile Segment Enhancement, MIM-104 Patriot PAC-3 MSE
Hit-to-kill Patriot interceptor against tactical ballistic missiles, cruise missiles and aircraft.
$3,871,000 per shotRun it in the Exchange Ratio
| Maker | Lockheed Martin |
|---|---|
| Origin | United States |
| Built | Camden, Arkansas, USA (Lockheed Martin final assembly) |
| Length | 5.2 m |
| Diameter | 0.29 m |
| Propulsion | 11.4-inch dual-pulse solid rocket motor plus attitude control motors |
| Guidance | Inertial navigation with uplink/downlink datalink, active Ka-band radar seeker; hit-to-kill with lethality enhancer, no conventional warhead |

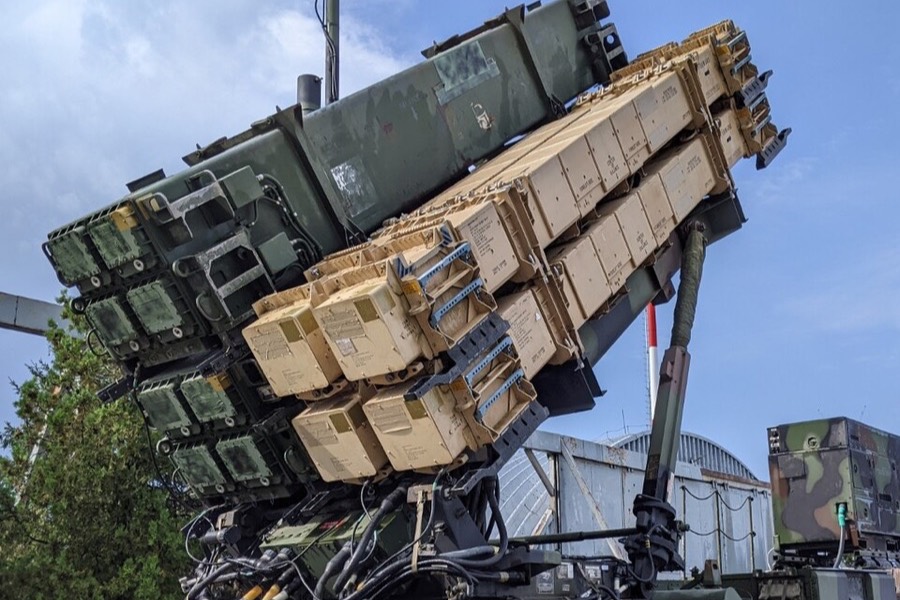

| Launcher | Patriot M903 launcher: 12 PAC-3 MSE, or 6 MSE plus 8 PAC-3 CRI, or 16 CRI; a typical battery has 6 to 8 launchers, so 72 to 96 MSE ready to fire when fully loaded with MSE |
Lockheed publishes the 11.4-inch motor and launcher loadouts but no range, altitude or weight; Wikipedia's figures (about 60 km against ballistic targets, 120 km against aircraft, 36 km ceiling) are marked as estimates, and the 312 kg CSIS weight is for the earlier PAC-3 CRI. Length is given as about 5.2 m by Army Recognition and 5.3 m (estimated) elsewhere. Ukraine first used PAC-3 family missiles in combat in May 2023, but no public source confirms which variant made the first combat intercept.
Sources (9)
- PAC-3 MSE Overview (Lockheed Martin, DAL2024070273), 11.4 in dual pulse SRM (diameter_m)
- PAC-3 MSE Overview (Lockheed Martin) (propulsion)
- PAC-3 MSE Overview (Lockheed Martin) (guidance)
- PAC-3 MSE Overview (Lockheed Martin), Patriot load-out options (launcher)
- Patriot (CSIS Missile Threat), six to eight launching stations per battery (launcher)
- Patriot PAC-3 MSE GEM-T (Army Recognition) (length_m)
- MIM-104 Patriot (Wikipedia) (notes)
- Patriot (CSIS Missile Threat) (notes)
- New Lockheed Martin Facility to Support Increased PAC-3 Production (Lockheed Martin) (built_where)
