interceptor missilecombat-provenpartial data
AIM-120 AMRAAM (NASAMS)
AMRAAM, AIM-120C, SL-AMRAAM

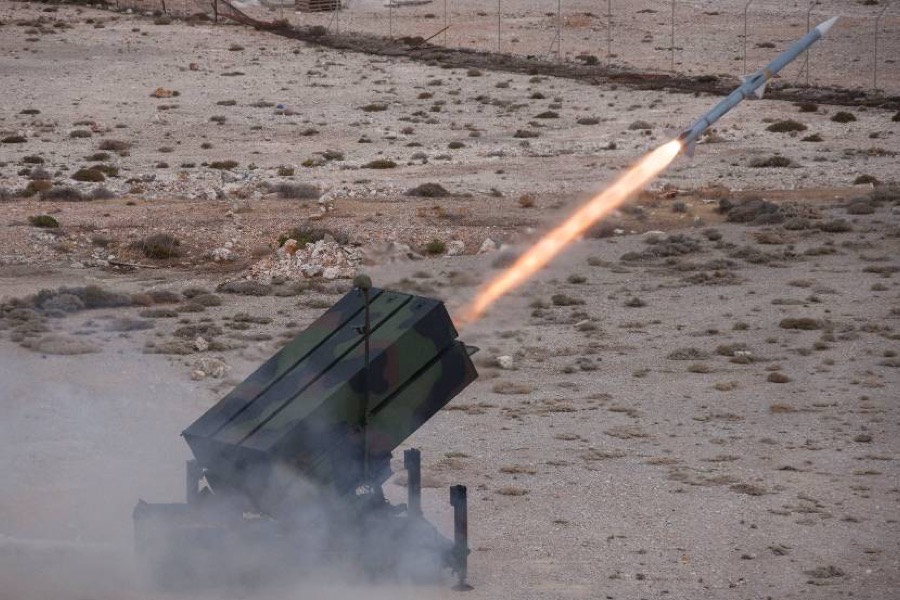

Active radar-guided air-to-air missile fired from NASAMS ground launchers as a medium-range surface-to-air interceptor.
$1,370,000 per shotRun it in the Exchange Ratio
| Maker | Raytheon (RTX) missile; Kongsberg Defence & Aerospace NASAMS launcher and fire control |
|---|---|
| Origin | United States (missile); Norway (NASAMS system) |
| Built | Tucson, Arizona, USA (Raytheon AMRAAM production) |
| First combat | 2022, Ukraine (NASAMS ground-launched; in use by November 2022) |
| Length | 3.6 m |
| Span | 0.46 m |
| Diameter | 0.18 m |
| Launch weight | 152 kg |
| Warhead | 18.1 kg |
| Max range | 25 km |
| Propulsion | Boost-sustain solid-propellant rocket motor (Nammo) |
| Guidance | Inertial midcourse with datalink updates, active radar terminal homing |

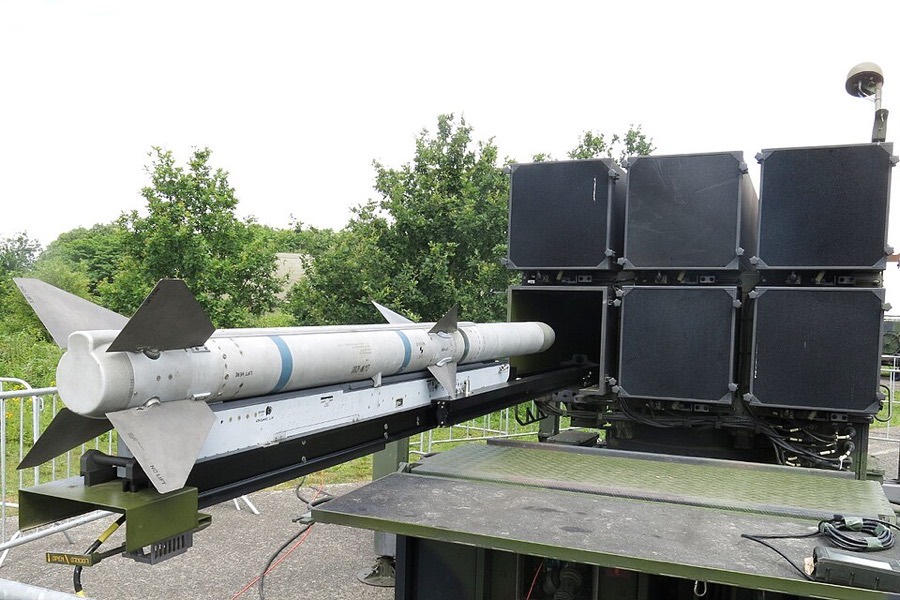

| Launcher | NASAMS canister launcher, up to 6 AMRAAMs per launcher |

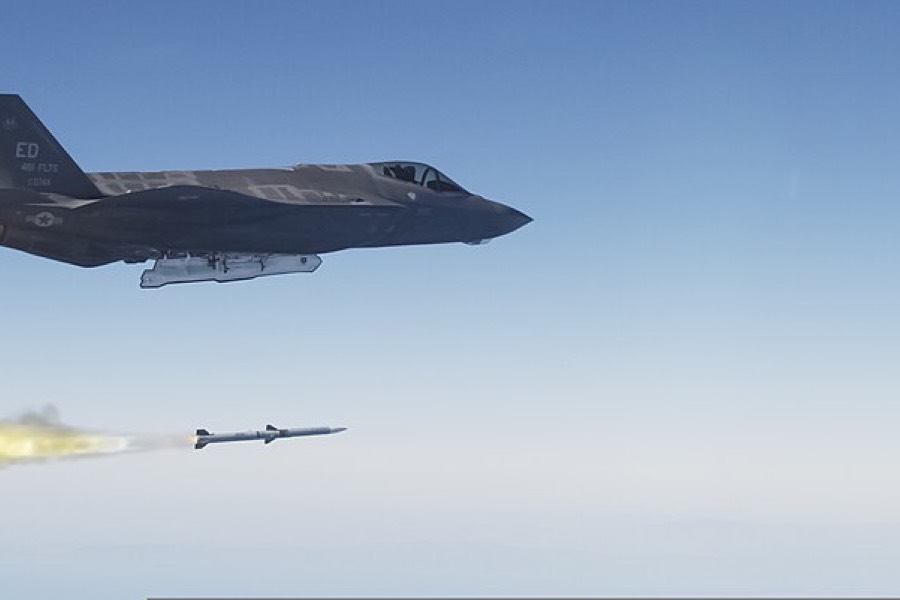

Ground-launched range is given as about 25 km by CSIS and up to 40 km by other sources; air-launched range is far longer, so air-to-air figures do not apply here. Weight and warhead vary by variant: Army Recognition lists 152 kg and 18.1 kg, while other references give about 161.5 kg and 20 kg for later C-model rounds. Kongsberg says more than 200 AMRAAMs have been launched from NASAMS, and the missile's first air-to-air combat use came long before NASAMS.
Sources (13)
- AIM-120 Advanced Medium-Range Air-to-Air Missile (Air & Space Forces Magazine), 12 ft (length_m)
- AIM-120 AMRAAM (Air & Space Forces Magazine), 7 in (diameter_m)
- AIM-120 AMRAAM (Air & Space Forces Magazine), 1.5 ft for C/D (span_m)
- AIM-120 AMRAAM (Air & Space Forces Magazine) (propulsion)
- AIM-120 AMRAAM (Air & Space Forces Magazine) (guidance)
- NASAMS technical data sheet (Army Recognition) (launch_weight_kg)
- NASAMS technical data sheet (Army Recognition) (warhead_kg)
- Lithuania Receives NASAMS Air Defense System (CSIS Missile Threat) (range_km)
- National Advanced Surface to Air Missile System, Norway (Airforce Technology) (notes)
- NASAMS Multi-Missile Launcher (Kongsberg) (launcher)
- NASAMS Multi-Missile Launcher (Kongsberg) (notes)
- Raytheon receives up to $20.7 billion AMRAAM production contract (Military & Aerospace Electronics) (built_where)
- Pentagon confirms 2 NASAMS air defense systems delivery to Ukraine (Kyiv Independent) (first_combat)
